Hazleton Private Development Storm Sewer
- PRODUCTS : KUSTOMFLO, MANHOLES AND ACCESSORIES, PRODUCTS
- REALIZATION : 09/10/2025
TECHNICAL DATA
STORM SEWER
Location: Hazleton, PA
Installation: September, 2025
PROJECT DETAILS
Distributor: Core and Main
Contractor: Schlouch Inc.
Engineer: Bohler
PRODUCT DESCRIPTION
Diameter: 60in through 120in
Length:
60ft of 120in
660ft of 108in
400ft of 96in
770ft of 84in
135ft of 60in
Profile Information: Both open and closed profiles to meet the needs of varying cover conditions, loading conditions, and groundwater conditions
Joints: Gasketed
SITE CONDITIONS
Trench Depth: Varies, 10ft to 34ft
Trench Width: Varies based on pipe diameter
Type of Existing Soil: Urban fill, old dumping site, weak irregular soils
Backfill Material: Crushed stone with little fines
Surface Material: Asphalt Pavement
Other: Unknown materials in old dumping site, concerns with acidity
CONTEXT
STORM SEWER
The Hazleton Private Storm Sewer Phase 1 project supports a major commercial development in Hazleton, Pennsylvania, featuring five proposed buildings, parking areas, and supporting infrastructure. Located downstream of a primary drainage corridor and adjacent to railroad property, the site receives significant runoff from the surrounding drainage area.
A key challenge was an existing municipal storm sewer discharging directly onto the property. The new network therefore, had to accommodate both site-generated runoff and incoming municipal flows. This required a high-capacity system capable of routing stormwater around future buildings, across varying terrain, and into multiple stormwater management basins.

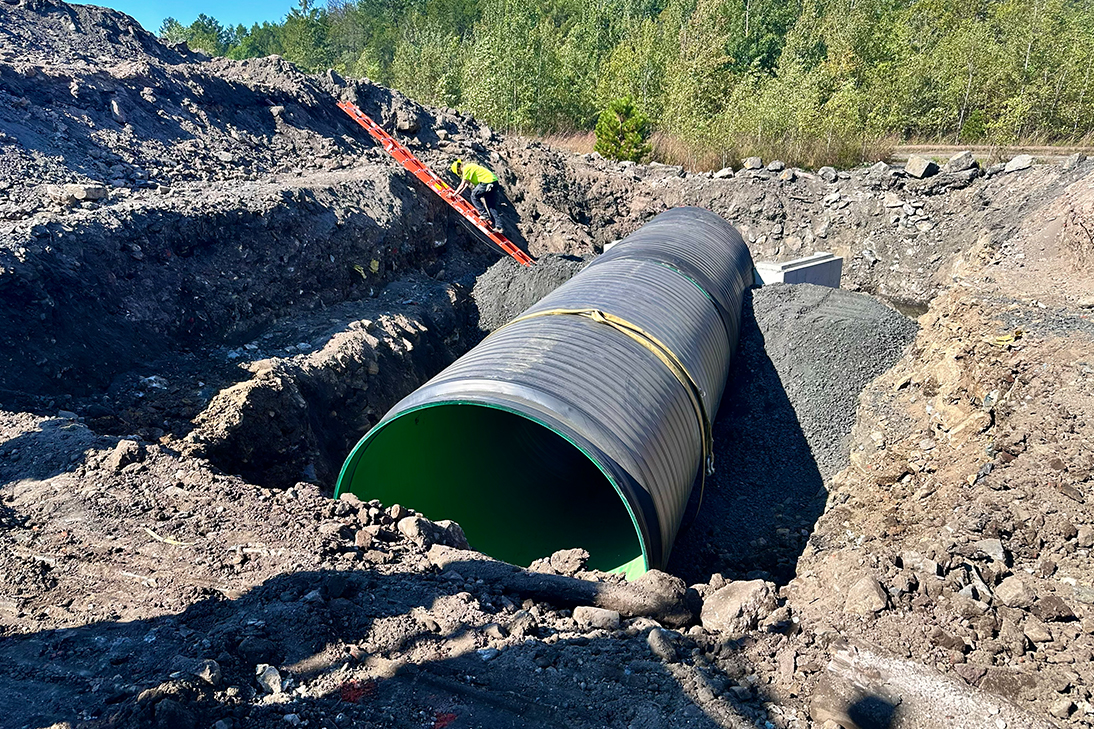

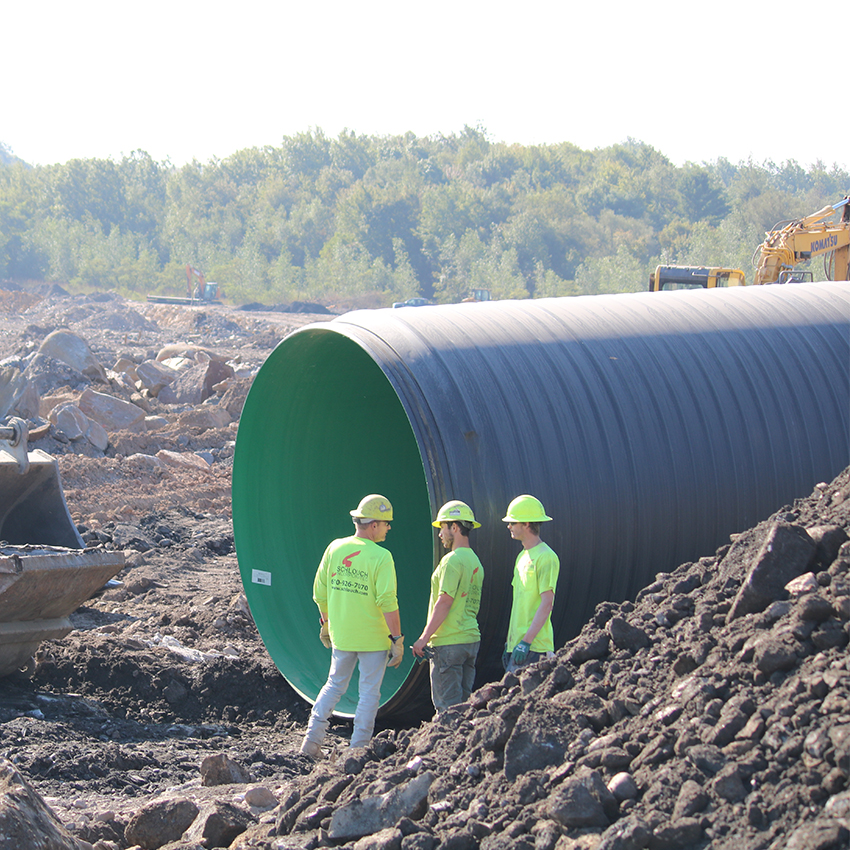

Installed in Fall 2025, Phase 1 includes approximately 2,025 linear feet of KUSTOMFLO pipe, ranging from 60 to 120 inches in diameter, with customized profiles engineered for varying cover depths, loading conditions, and groundwater conditions.
CHALLENGE
The project’s demanding drainage conditions required a system capable of handling high stormwater volumes, variable cover depths, heavy loads, and complex routing around future buildings. Originally designed with Reinforced Concrete Pipe (RCP) for the most heavily loaded sections, the contractor sought a more e cient alternative—one that could deliver faster installation, watertight performance, design flexibility, and greater cost efficiency across multiple pipe sizes.
SOLUTION
KUSTOMFLO replaced portions of the originally specified piping, offering lightweight installation, adaptability, and proven high-load performance. Engineers optimized pipe profiles for actual site conditions rather than designing solely for worst-case loads.

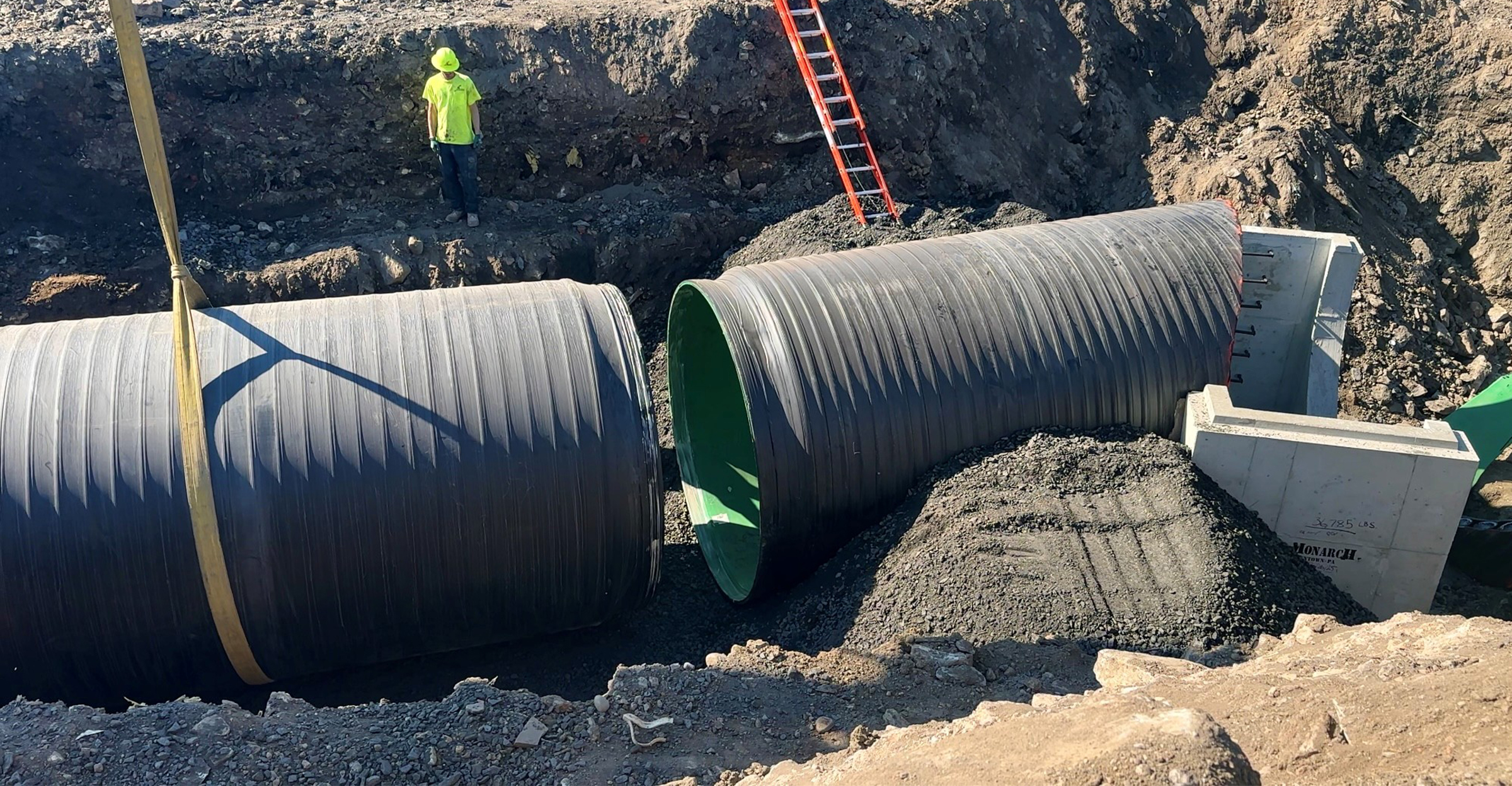

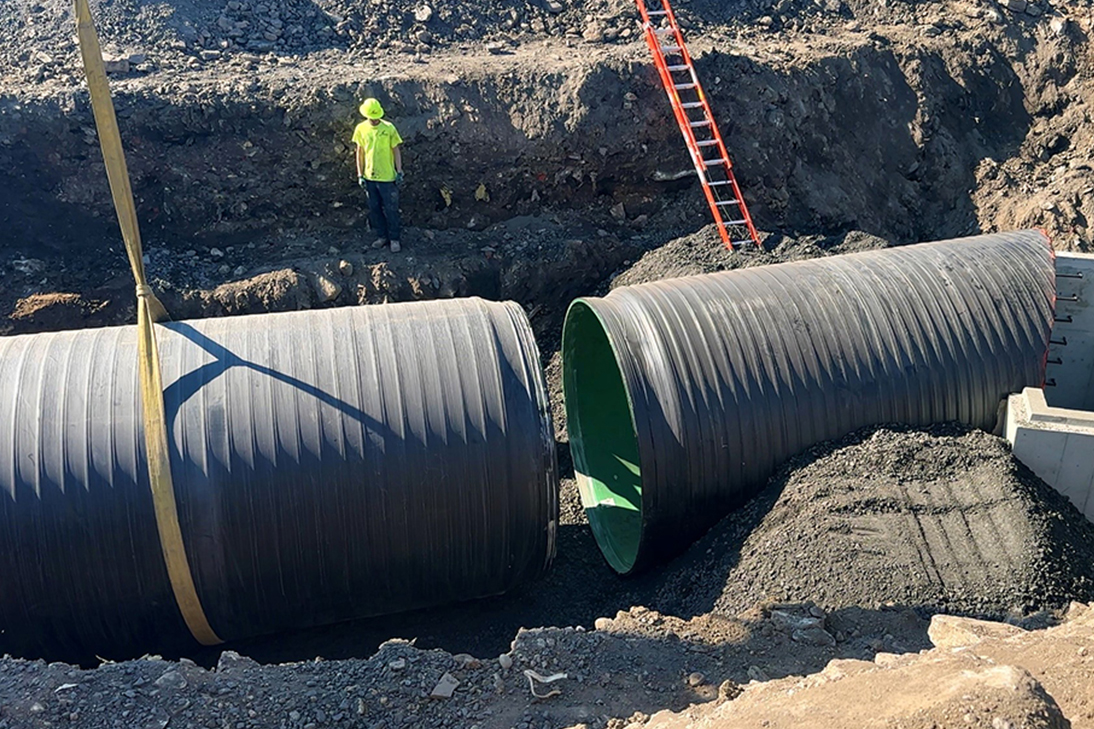

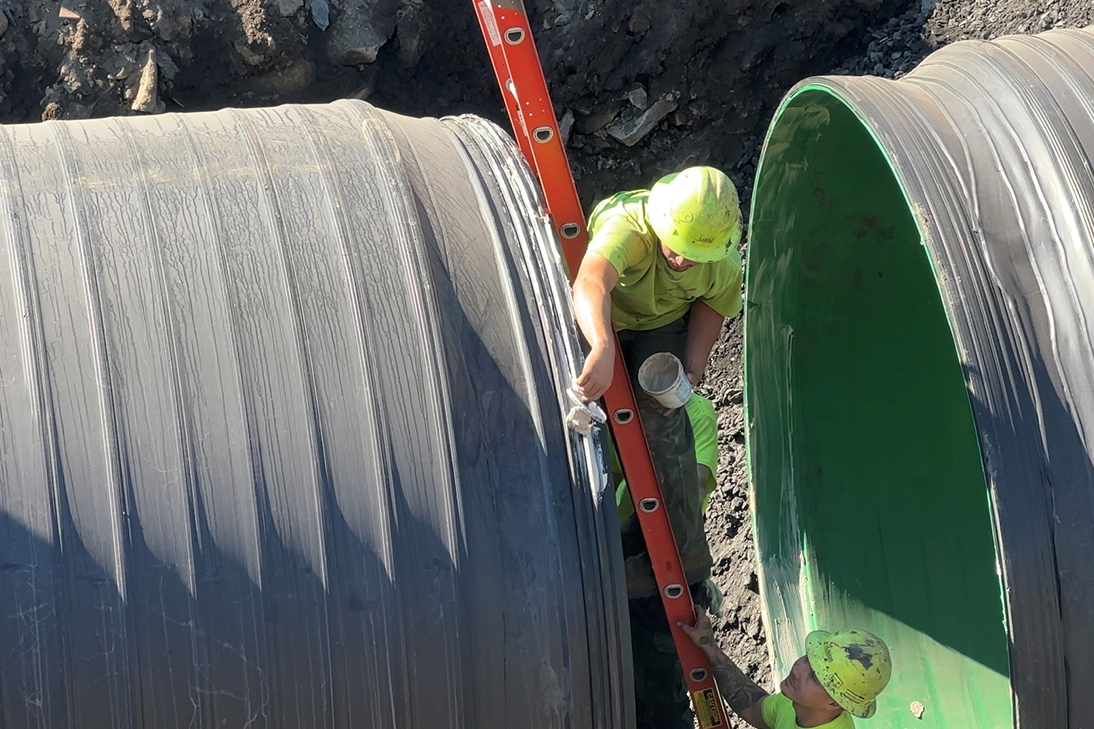

Customized lengths and profiles provided added field flexibility, including on-site cutting to fit precast structures. For the contractor’s first KUSTOMFLO installation, Soleno provided on-site support during initial connections and installation of the largest pipes. The double-gasket system simplified assembly, helping crews maintain installation speed and project schedules.
WHY KUSTOMFLO MADE THE DIFFERENCE
• Optimized profiles. Lower project costs.
KUSTOMFLO’s adaptable profiles allowed the contractor and distributor to match pipe strength to actual cover depths and loading conditions—rather than paying for a single profile designed for the worst-case scenario.
• Lighter pipe. Longer lengths. Faster installation.

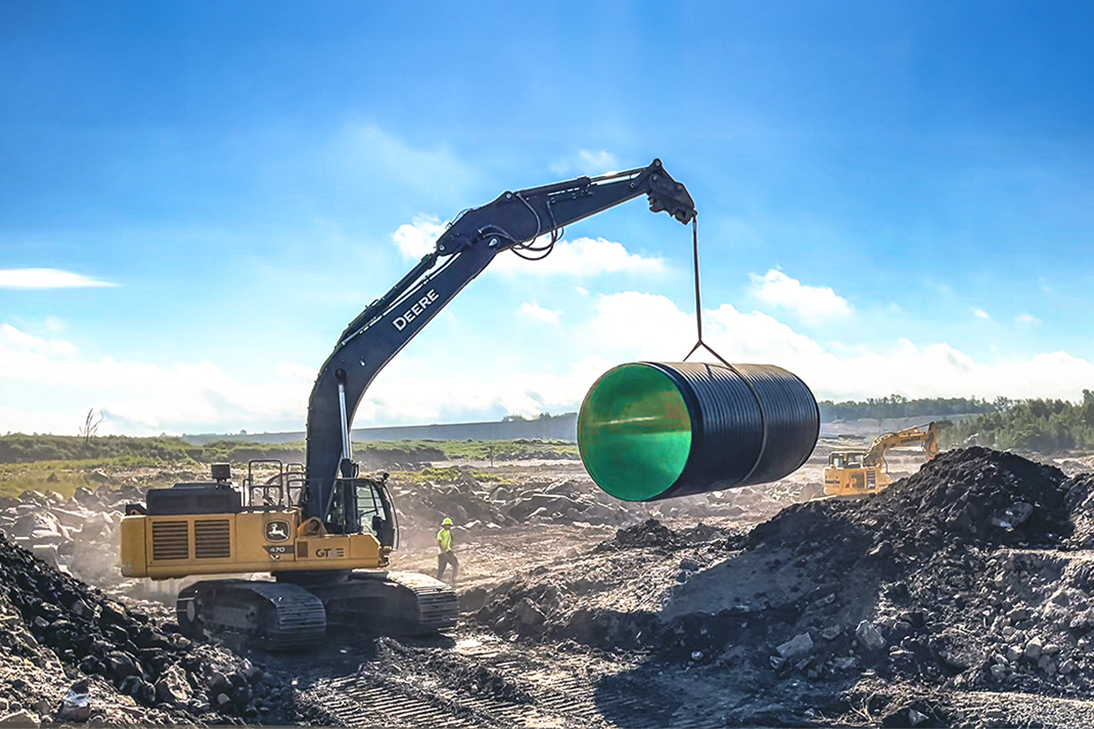

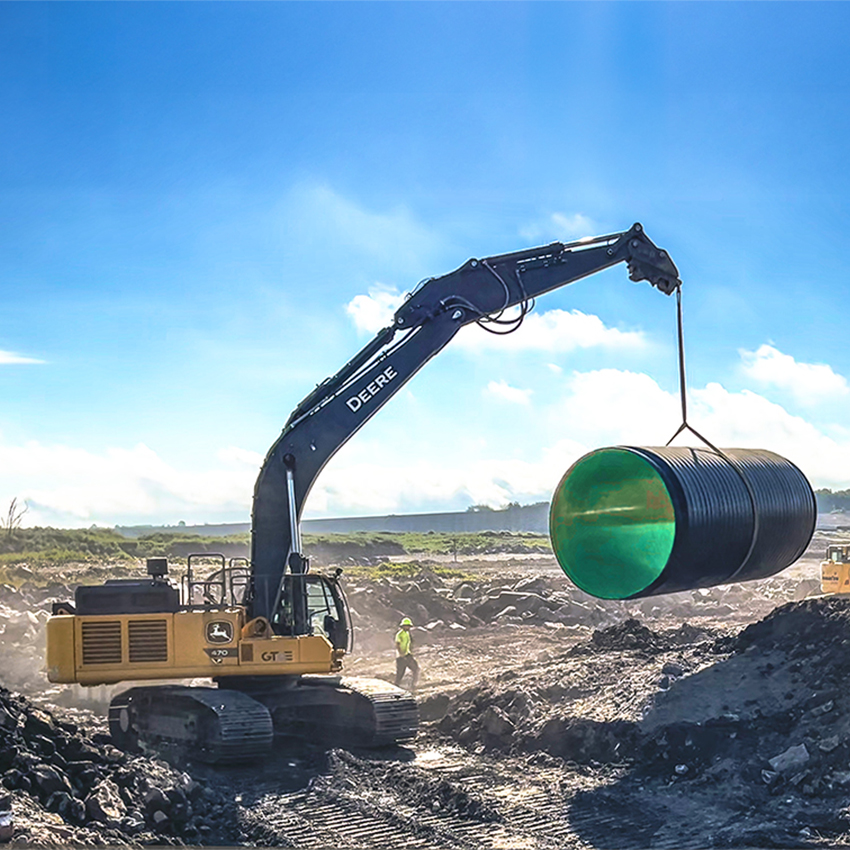

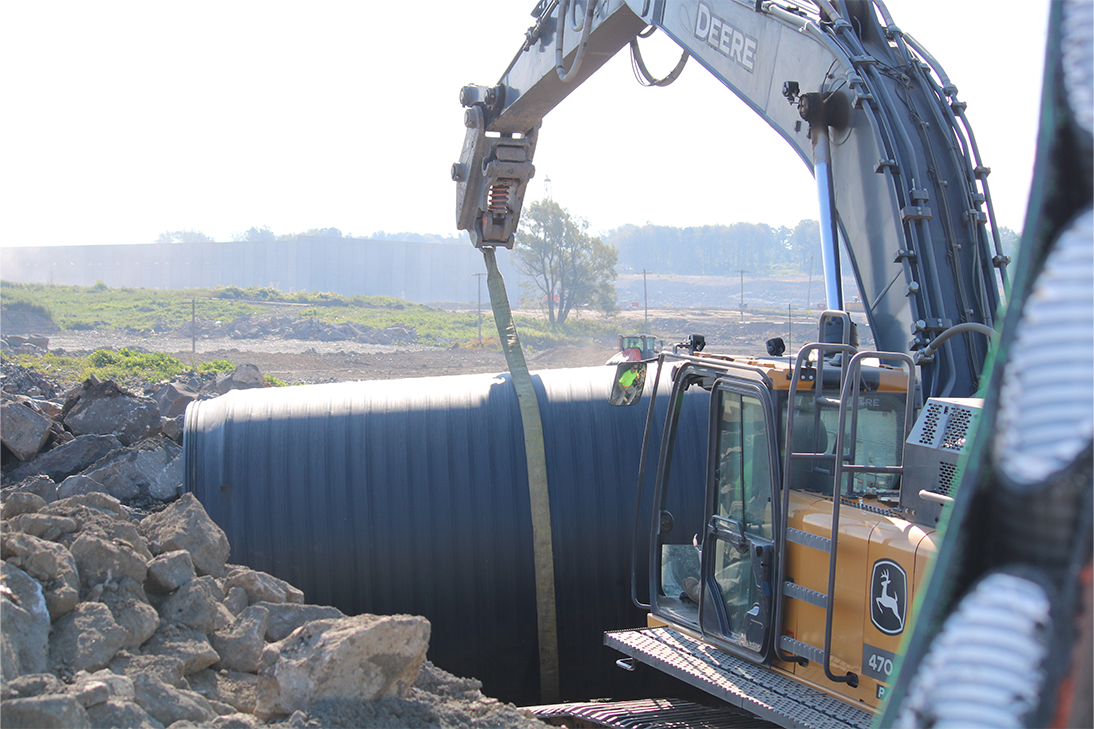

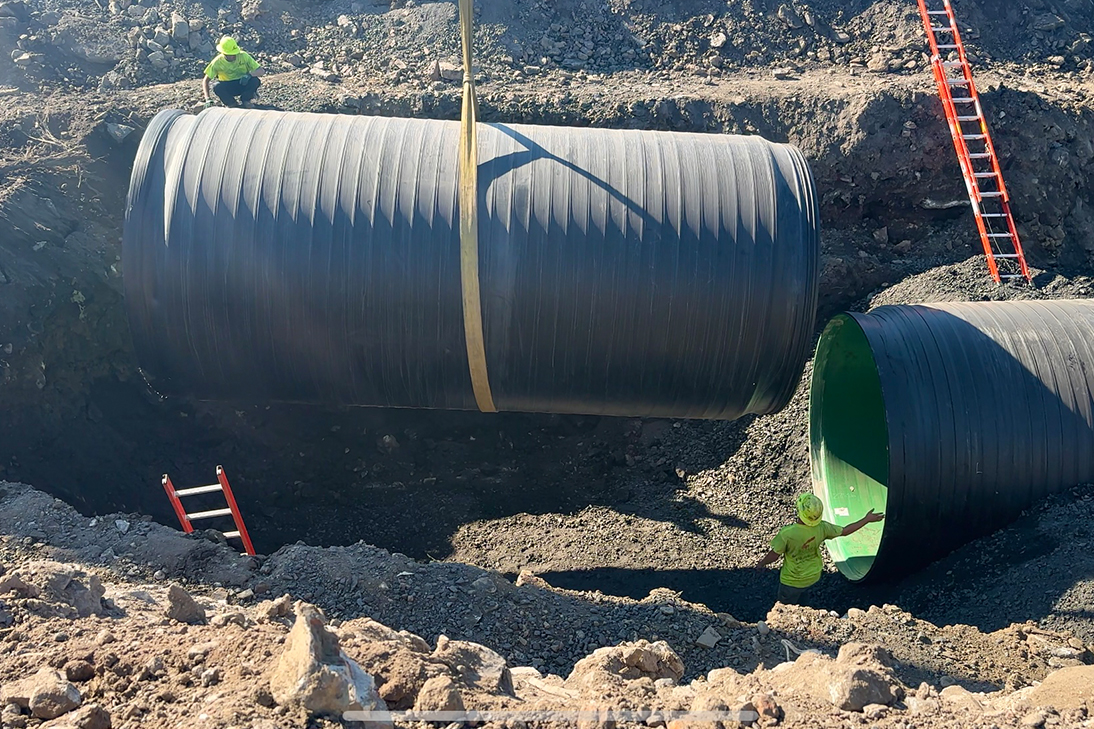

Significantly lighter than other materials considered and available in lay lengths up to 21 ft, KUSTOMFLO simplified handling and accelerated installation. Its double-gasket connection system was easy for field crews to assemble, helping keep construction moving efficiently.
• Field flexibility backed by Soleno expertise.

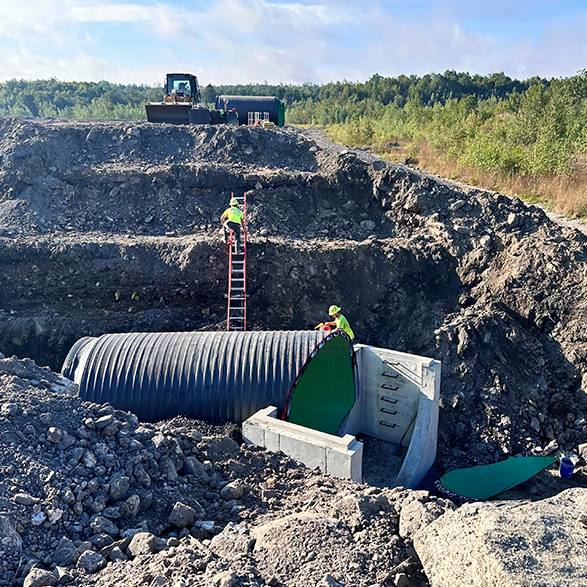

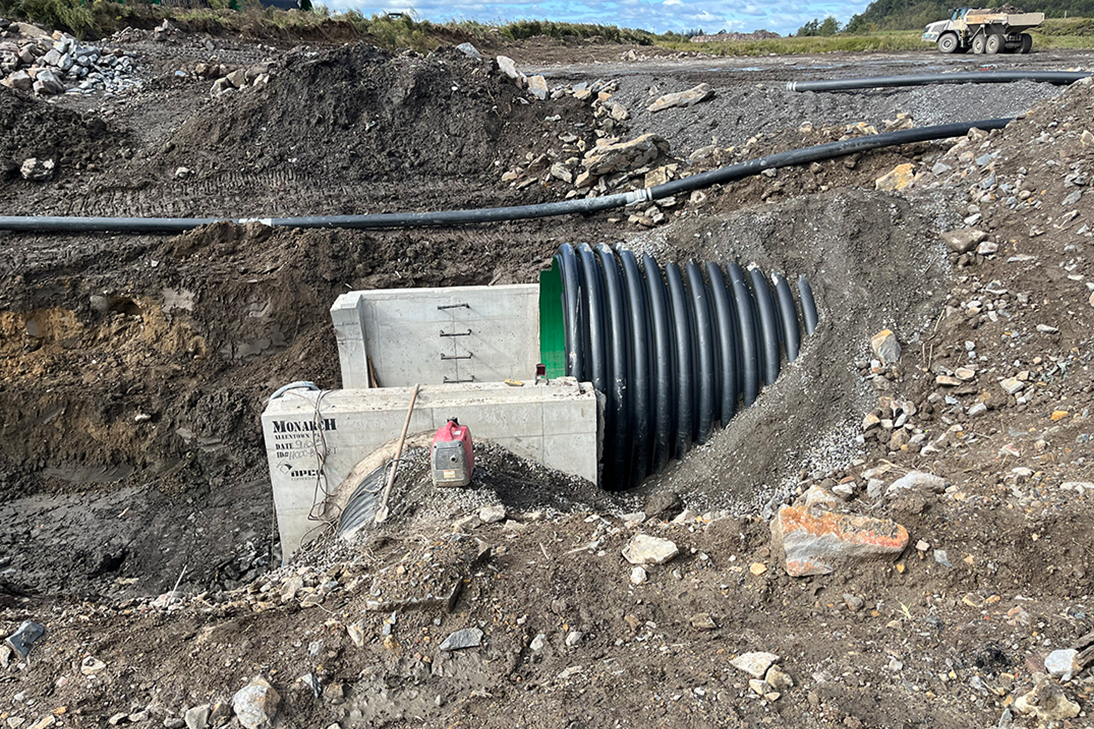

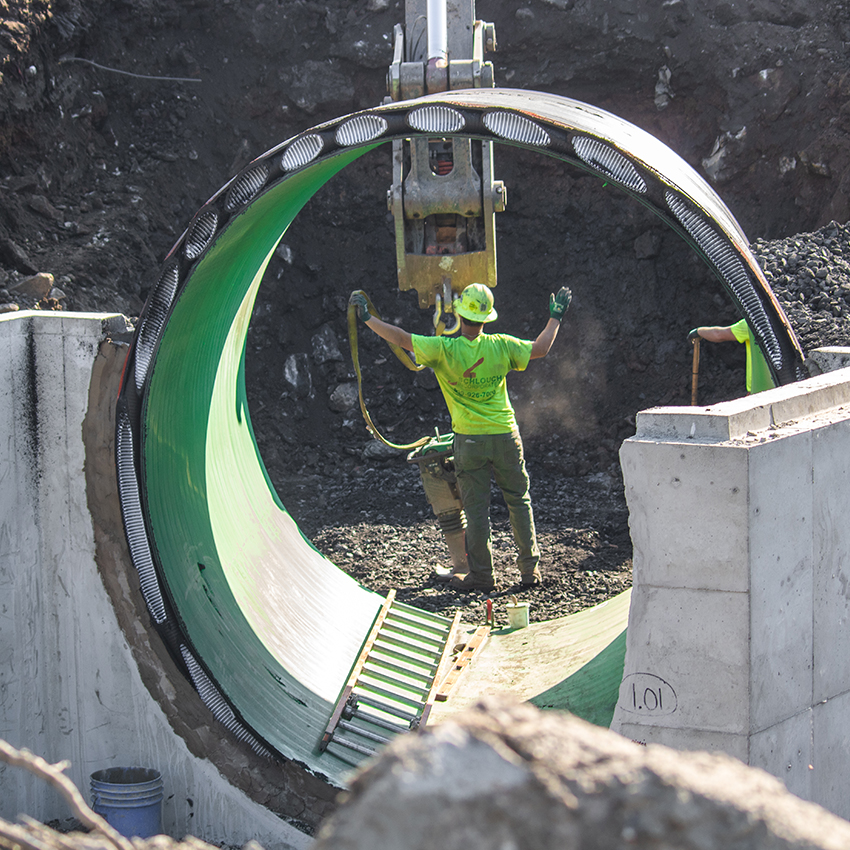

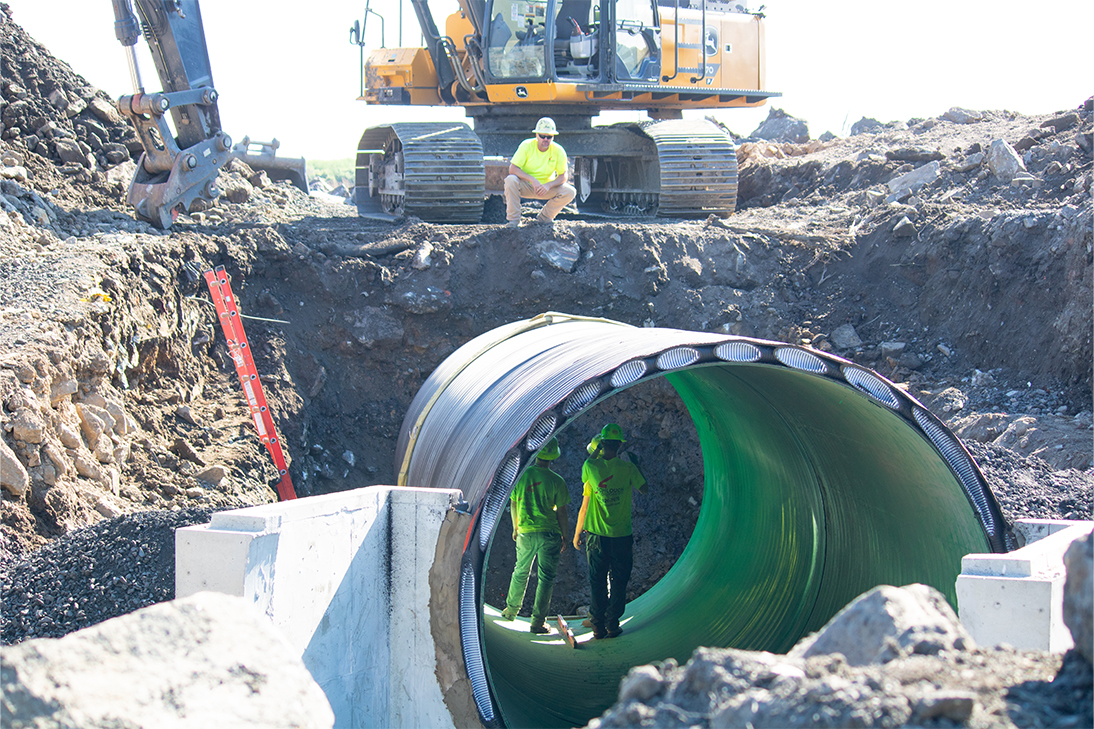

Pipe lengths and profiles were optimized for the project while allowing sections to be cut on site to fit precast concrete junction and access structures. For the contractor’s first KUSTOMFLO installation, Soleno representatives provided on-site guidance through the initial connections and installation of the largest-diameter pipes.
• Smarter logistics. Additional savings.

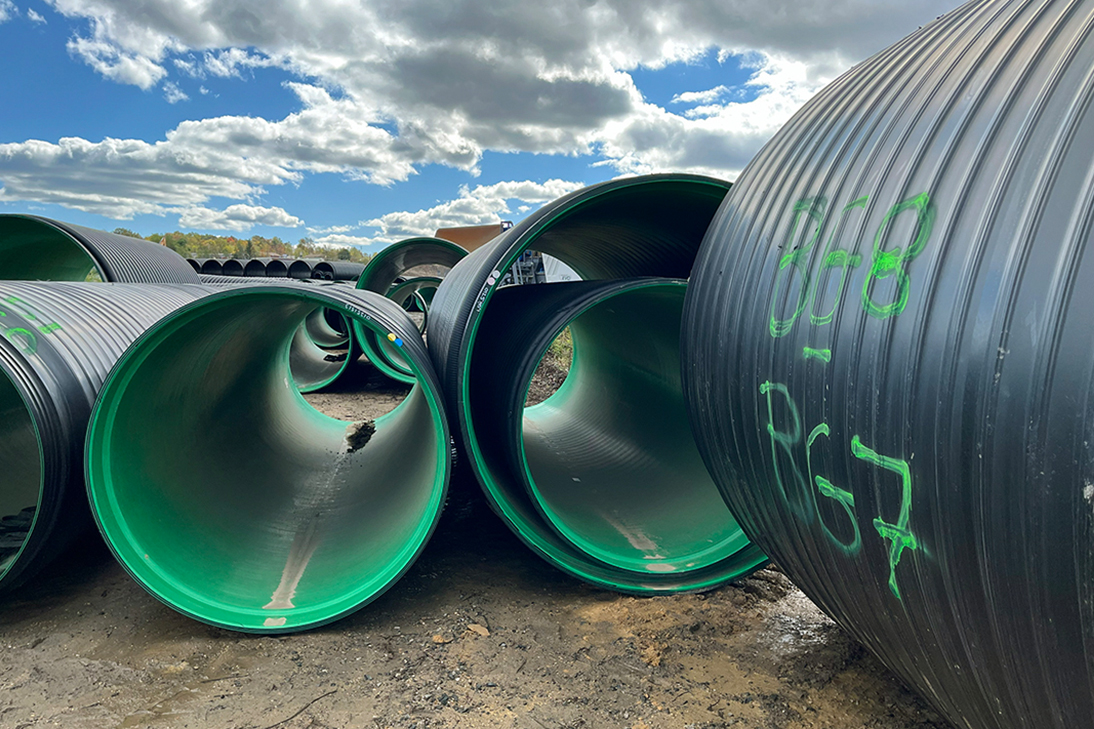

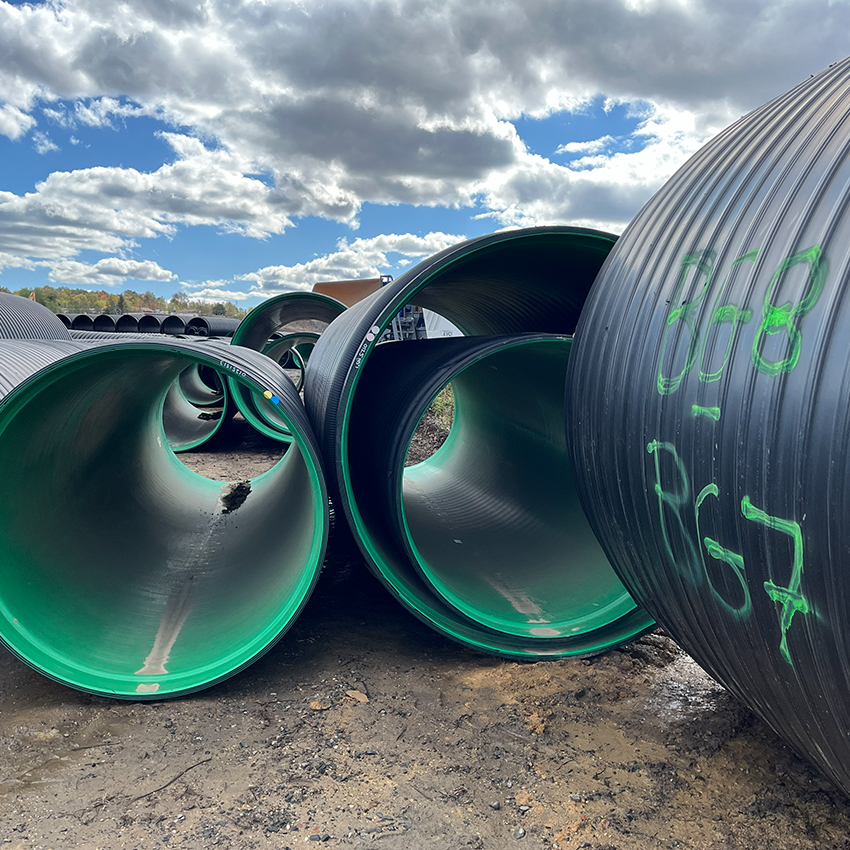

Multiple pipe diameters could be nested during shipment, maximizing transportation efficiency and generating additional cost savings for the project owner. Bottom line: KUSTOMFLO delivered optimized design, lower costs, faster installation, field adaptability, and hands-on technical support.
MORE ABOUT KUSTOMFLO
MADE TO MEASURE. MADE TO LAST.
KUSTOMFLO HDPE pipes are known for their robust and tailor-made piping systems designed to meet specific project requirements. The ADAPTIVE design allows optimization of the pipe profile to align with precise needs of the project or applicable standards. These HDPE pipes are engineered to customer specifications to optimize the performance of a flexible pipe. They offer versatility with hundreds of profile types and configurations with variable wall thickness, including solid wall, closed profile, and open profile options.
