Defiance Wastewater Treatment Equalization Tank
- PRODUCTS : KUSTOMFLO, MANHOLES AND ACCESSORIES, PRODUCTS
- REALIZATION : 07/01/2026
TECHNICAL DATA
WASTEWATER TANK
Location: Defiance, OH
Installation: July, 2026
PROJECT DETAILS
Owner: City of Defiance
Contractor: R.G. Zachrich Construction, Inc.
Engineer: Strand Associates
PRODUCT DESCRIPTION
Diameter: 54ft of 84-inch KUSTOMFLO and 14ft of 18-inch Pipeline Plastic PE4710
Profile Information: Closed profile
Joints: Electrofusion
Accessories: Two access risers and stubbed connections
SITE CONDITIONS
Trench Depth: 14 feet
Trench Width: Varying widths throughout site

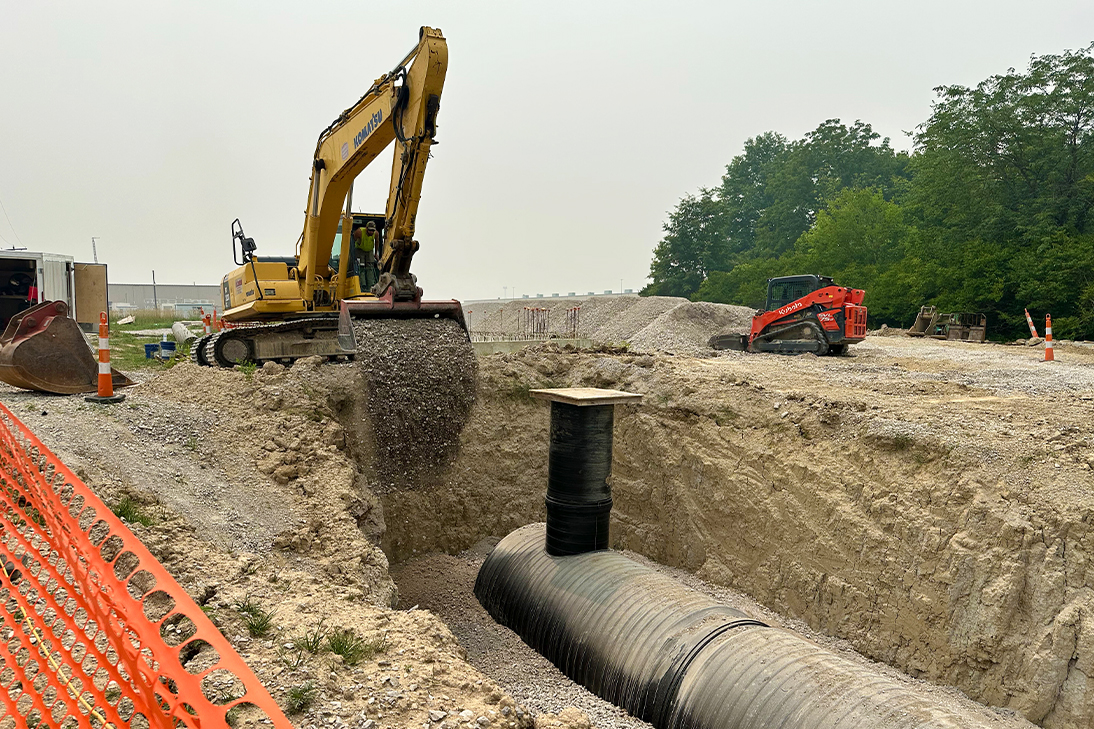

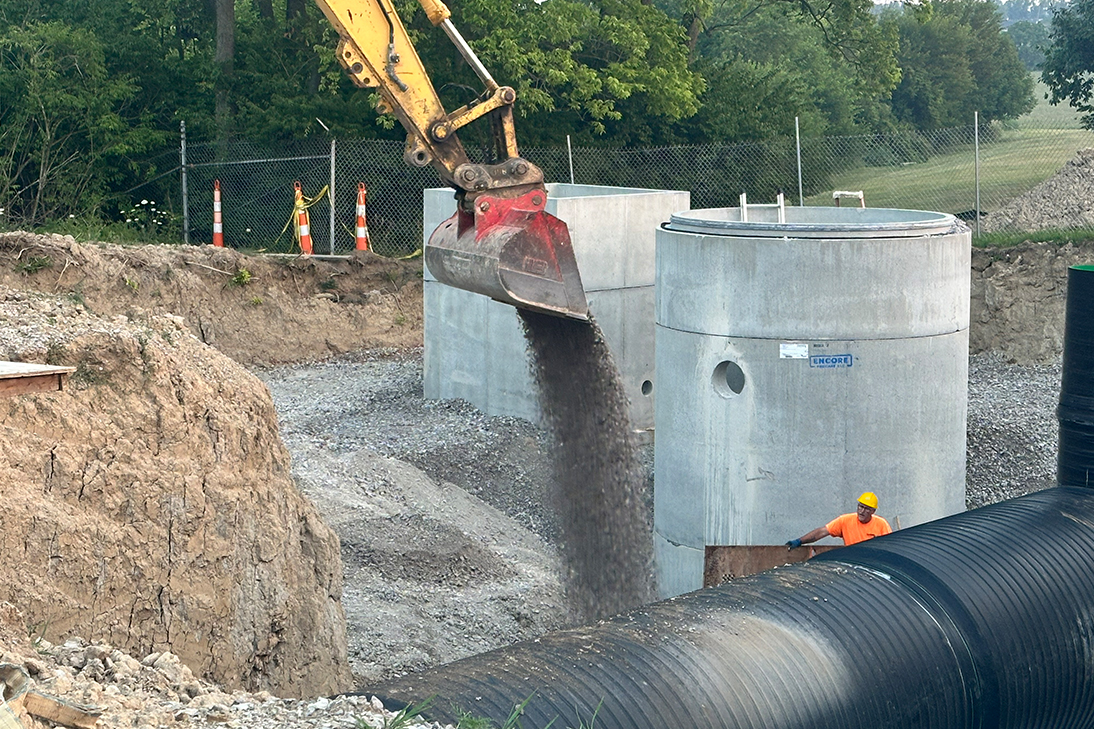

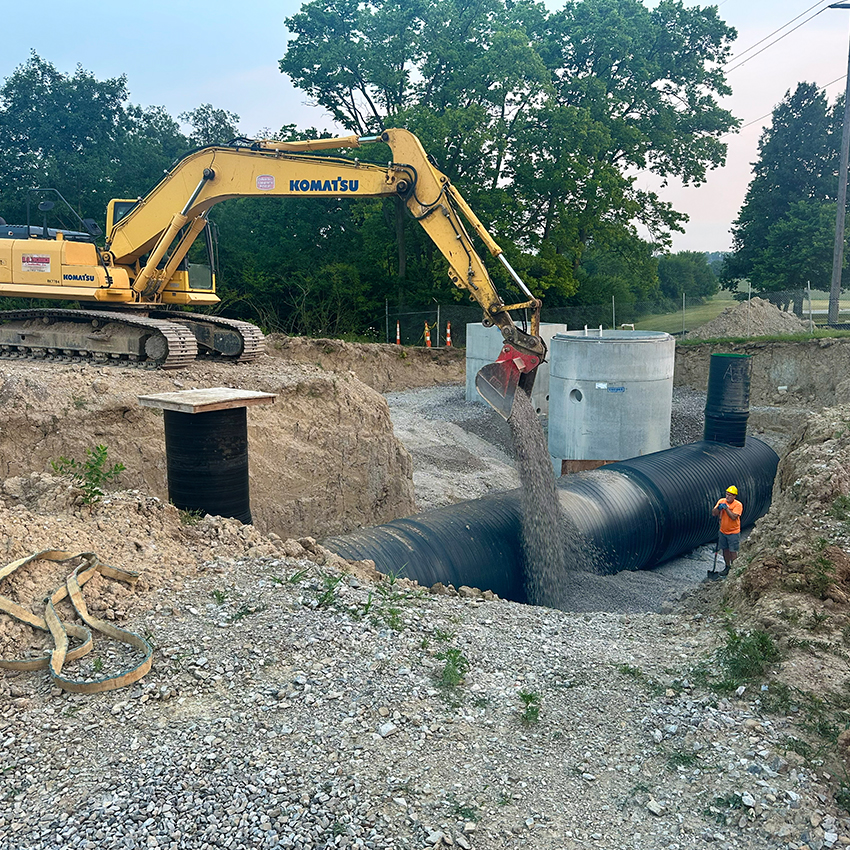

Backfill Material: #57 crushed stone at the base and #304 aggregated crushed stone with dust
Surface Material: 8-inch concrete drive
CONTEXT
WASTEWATER TREATMENT EQUALIZATION TANK

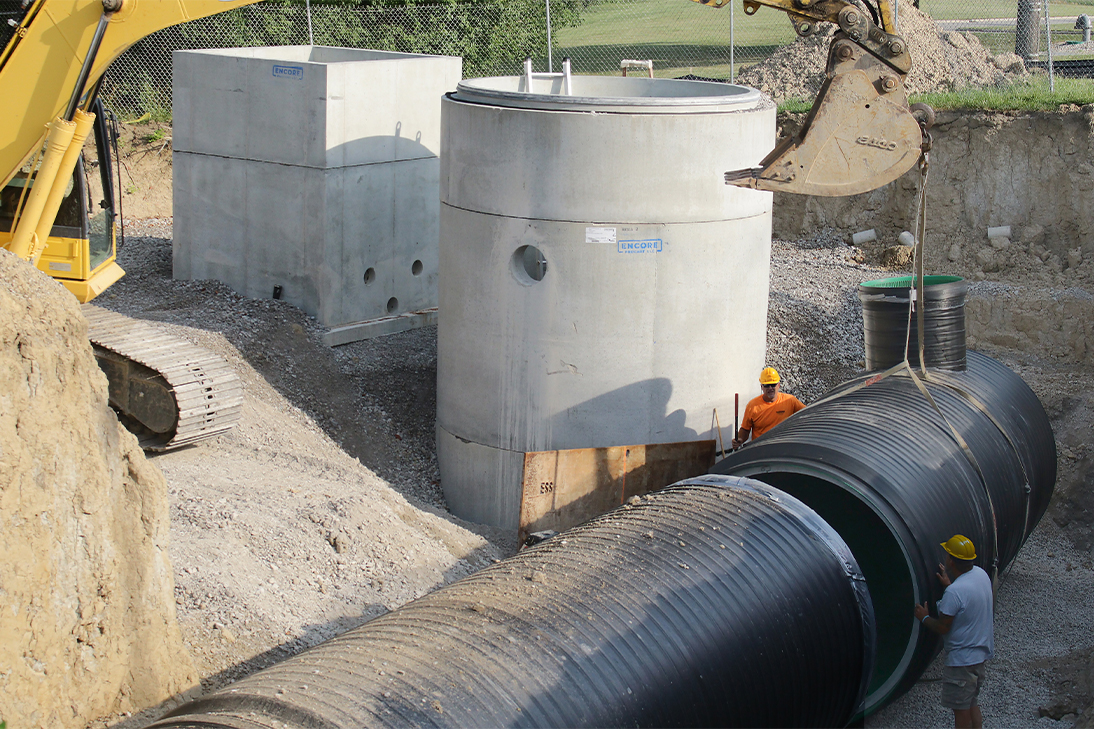

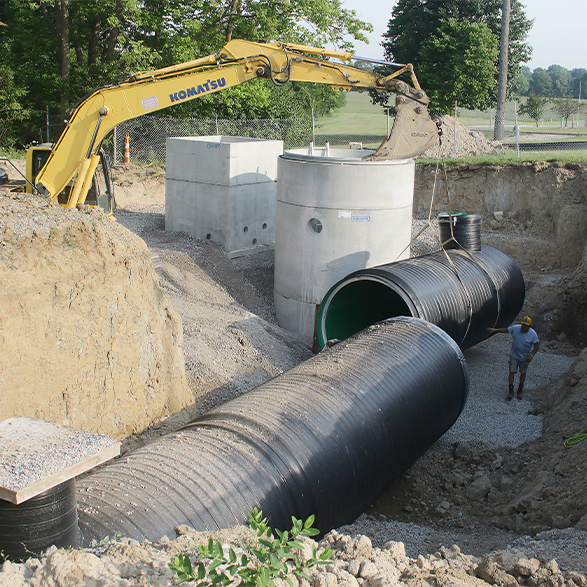

The City of Defiance’s Wastewater Treatment Equalization Tank project required a large-diameter storage solution capable of managing fluctuating wastewater flows while maintaining long-term system integrity. Installed in July 2026, the project included 54 feet of 84-inch KUSTOMFLO pipe and 14 feet of 18-inch PE4710 pipe. The installation was performed by R.G. Zachrich Construction, Inc. and engineered by Strand Associates.

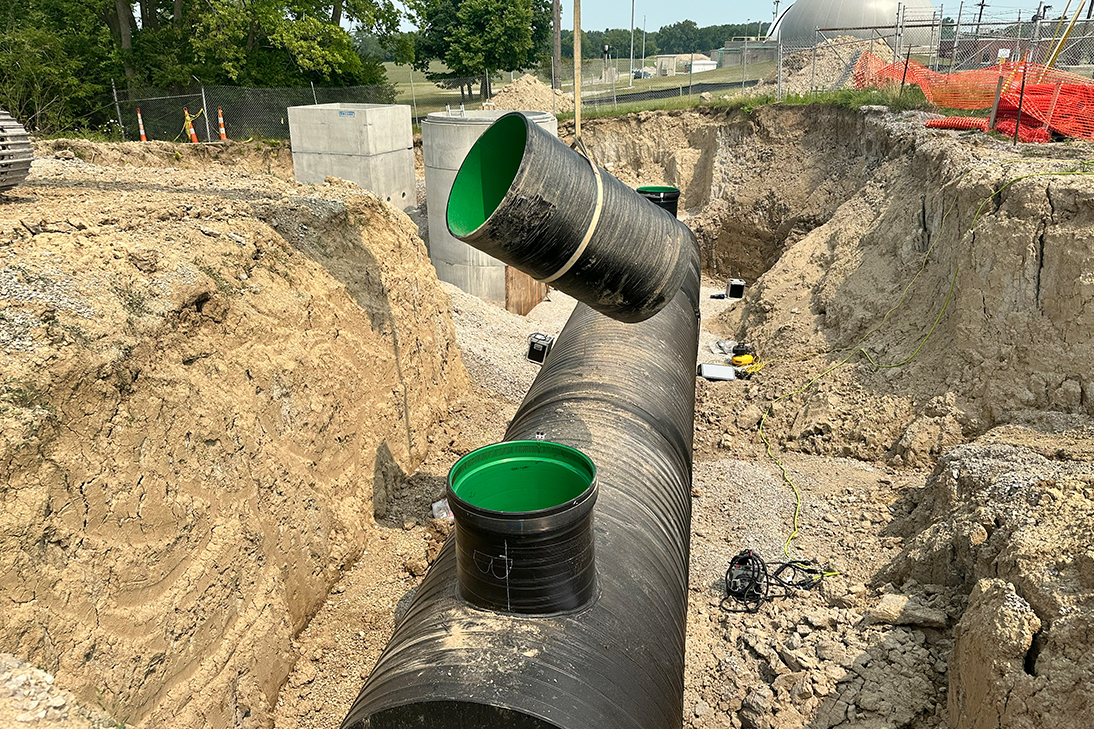

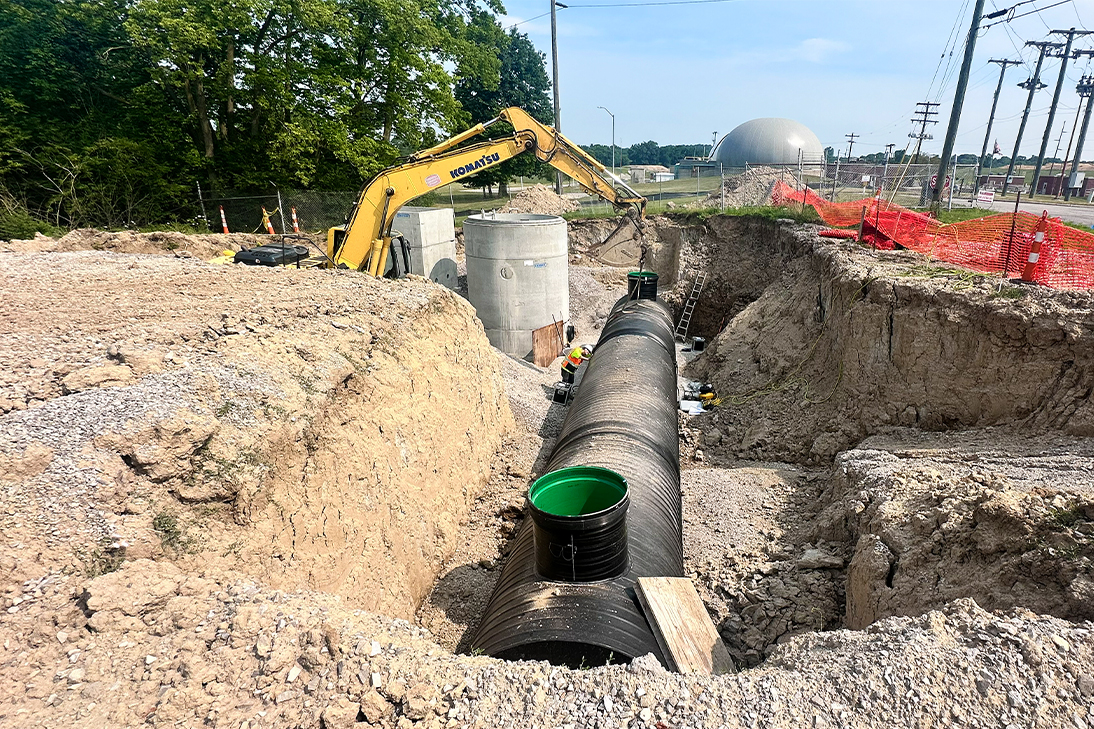

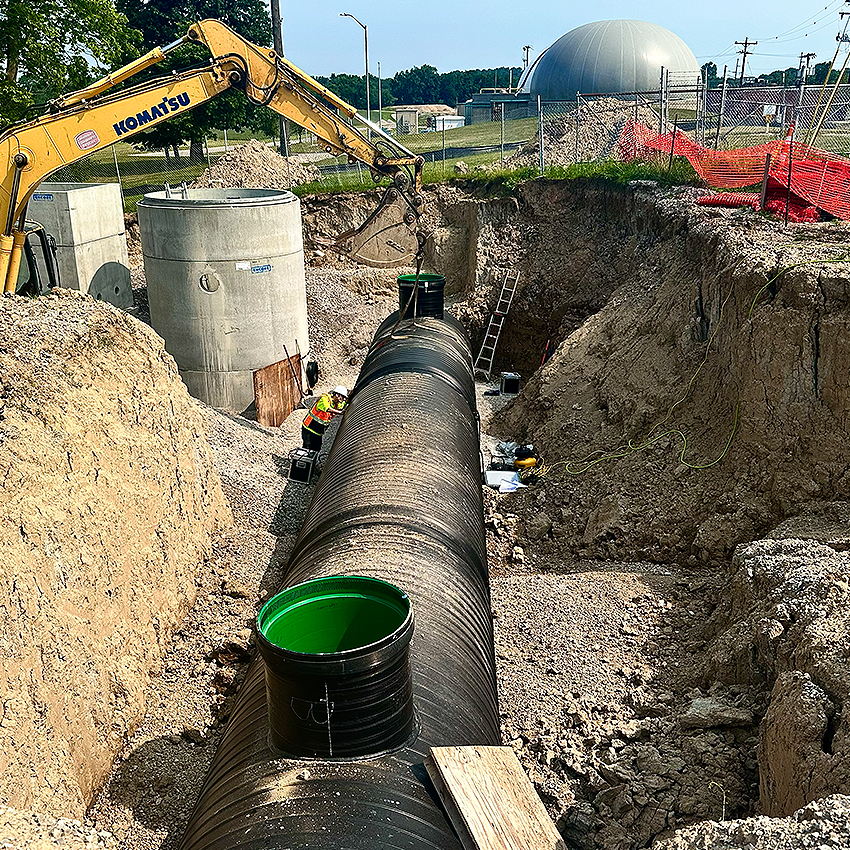

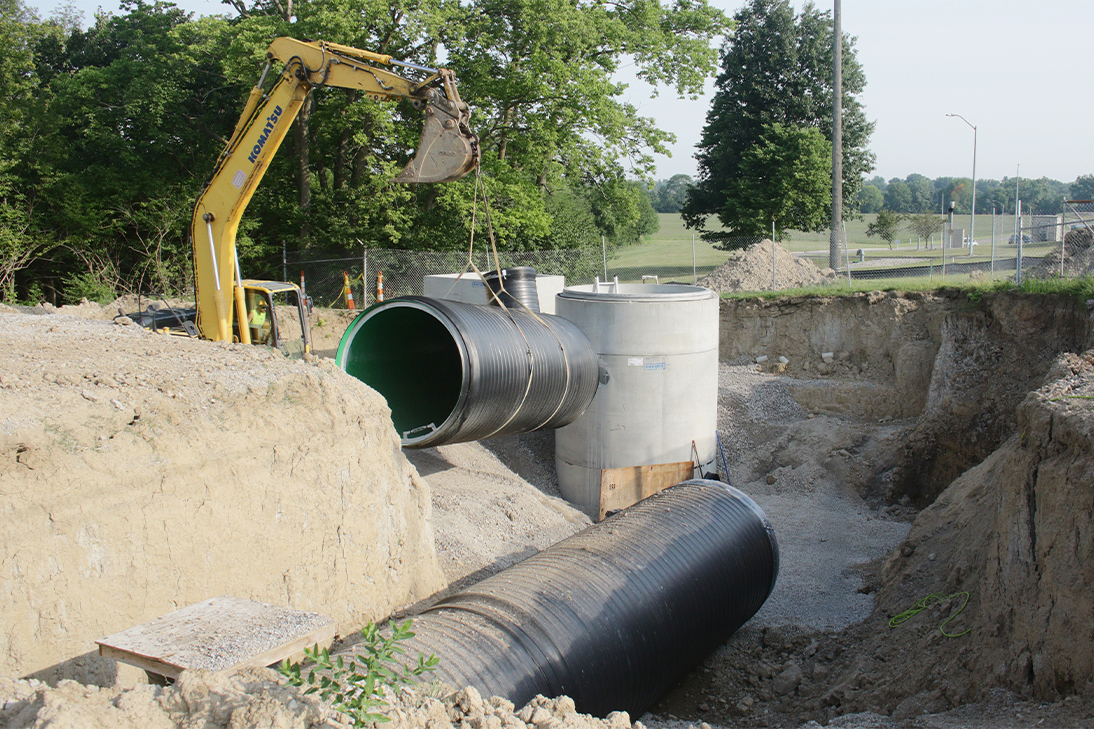

The system called for an 84-inch diameter tank installation beneath an 8-inch concrete drive surface at a depth of 14 feet. The project also required multiple access points and customized tank connections to accommodate site-specific design requirements.
CHALLENGE

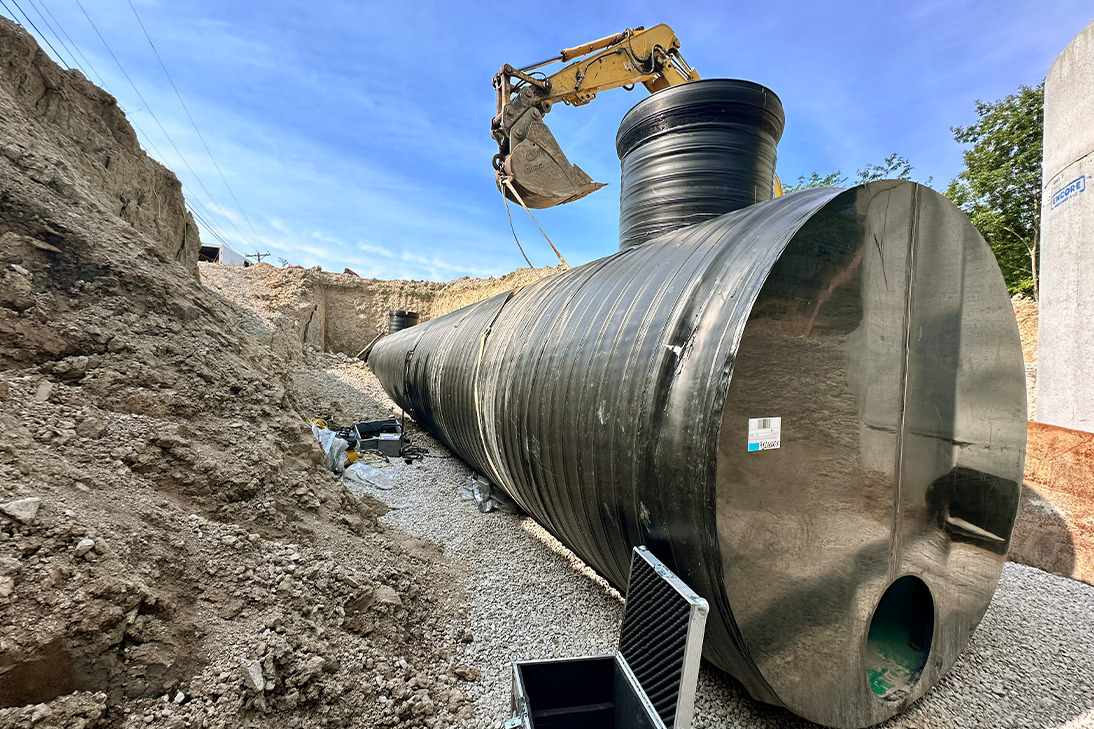

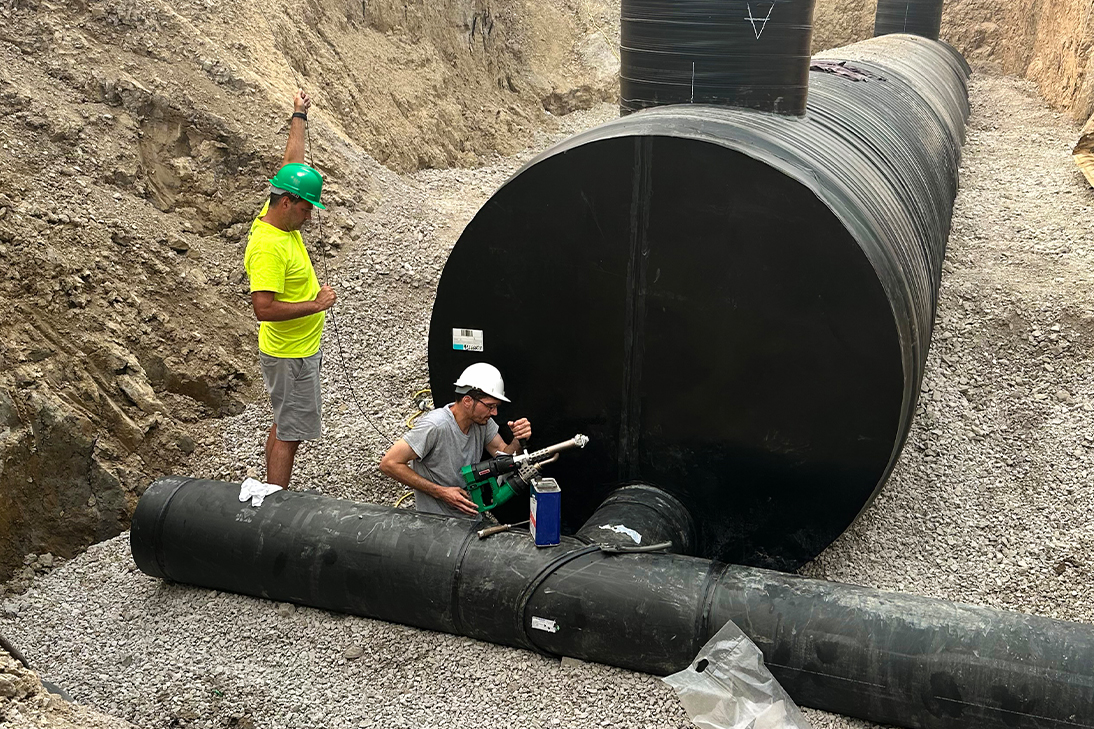

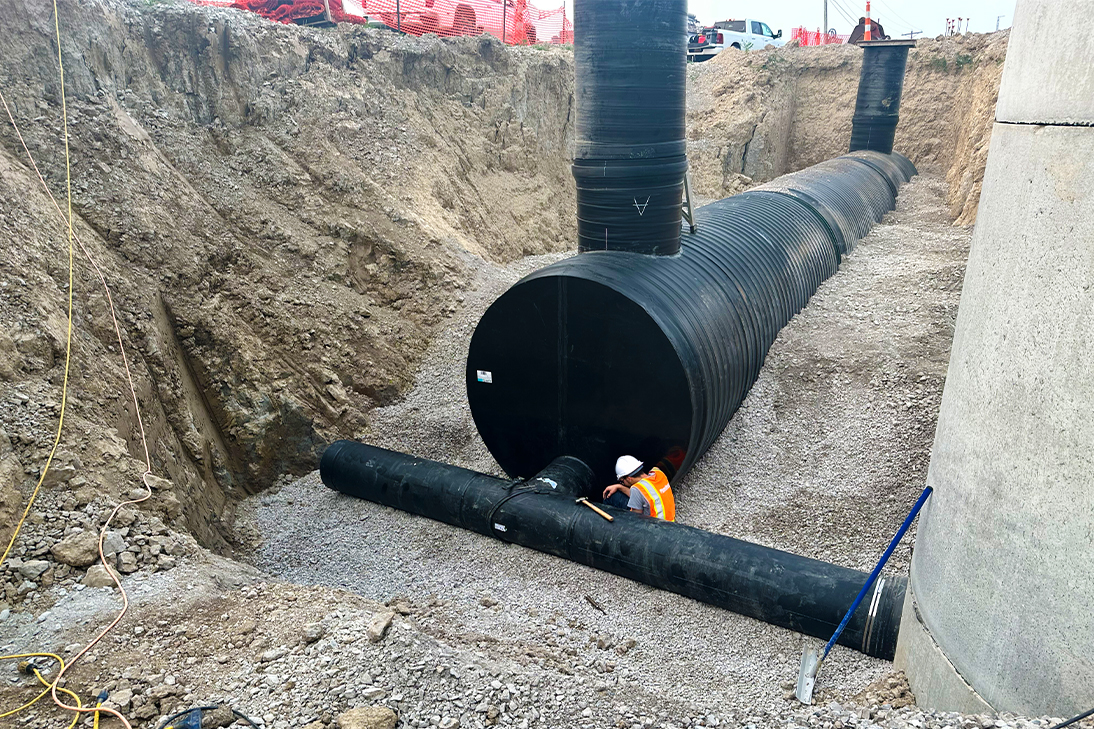

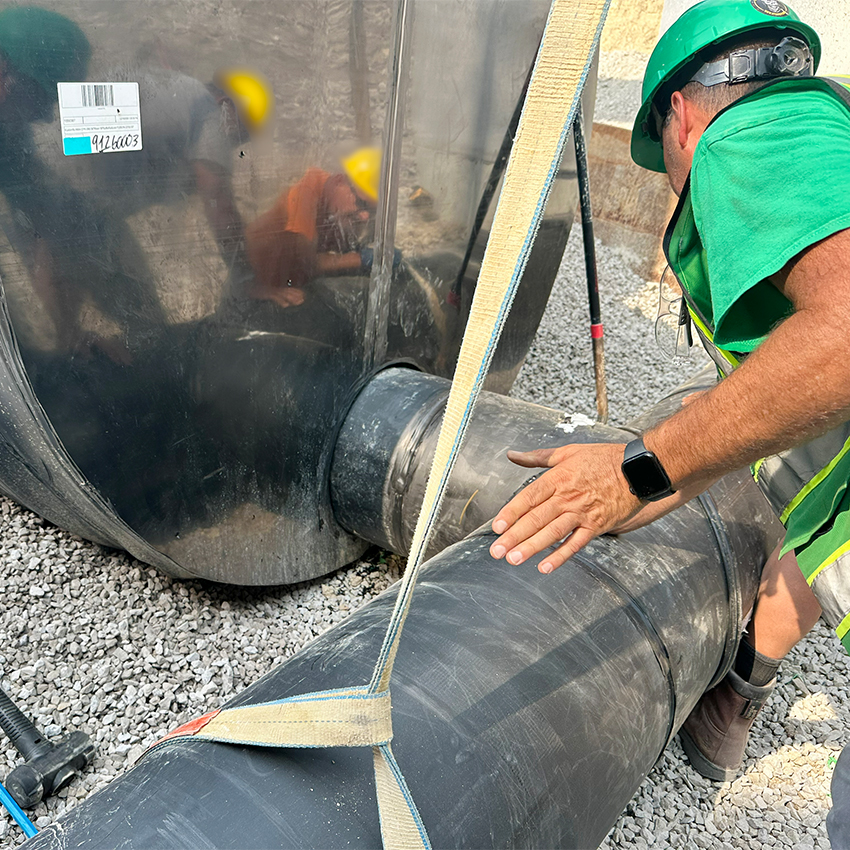

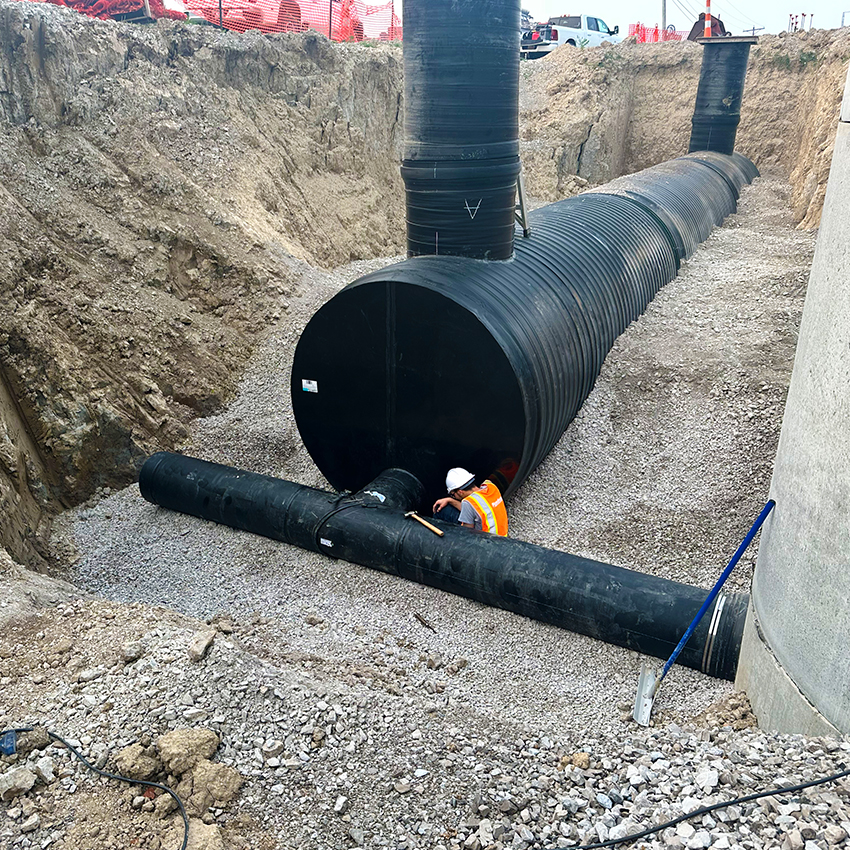

Several unique site conditions had to be addressed during the design and installation process. The equalization tank needed to connect to solid-wall inlet pipes at the bulkhead while also incorporating two access risers located at varying surface elevations. Achieving secure, watertight connections across these customized components was critical to the project’s success.
SOLUTION
KUSTOMFLO HDPE pipe was selected because it provided a lightweight, large-diameter system with customizable tank configurations and reliable watertight joining technology. The tank was fabricated with customized access risers and stubbed connections to meet the project’s unique layout requirements.

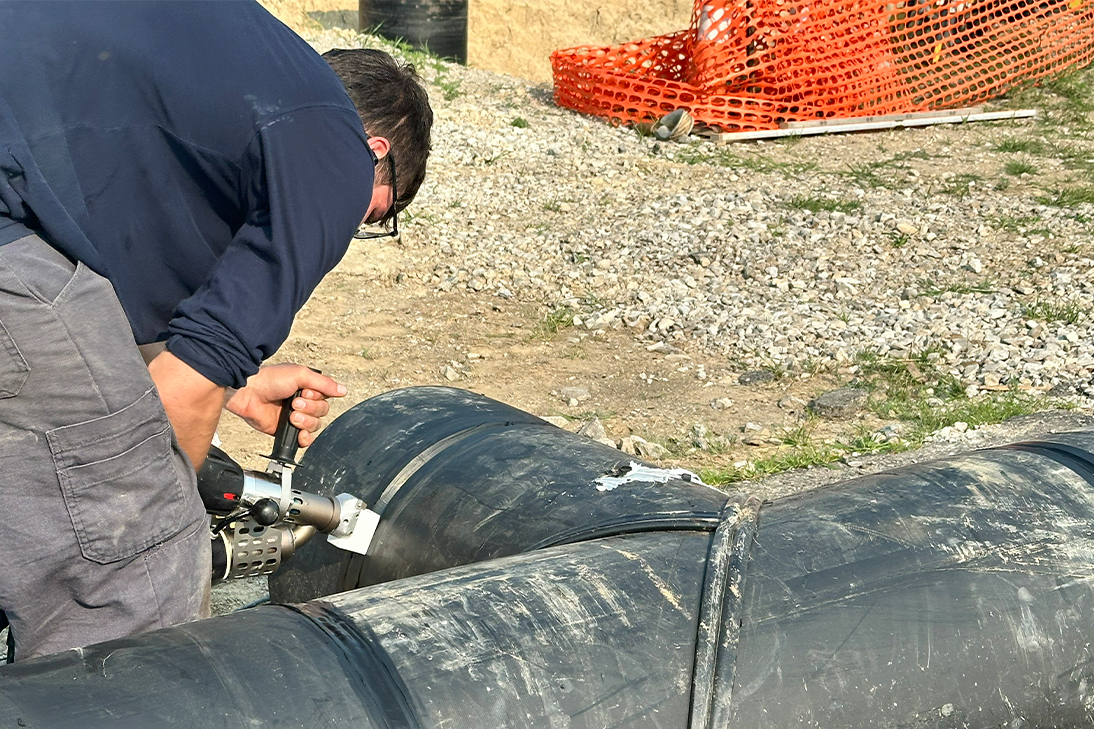

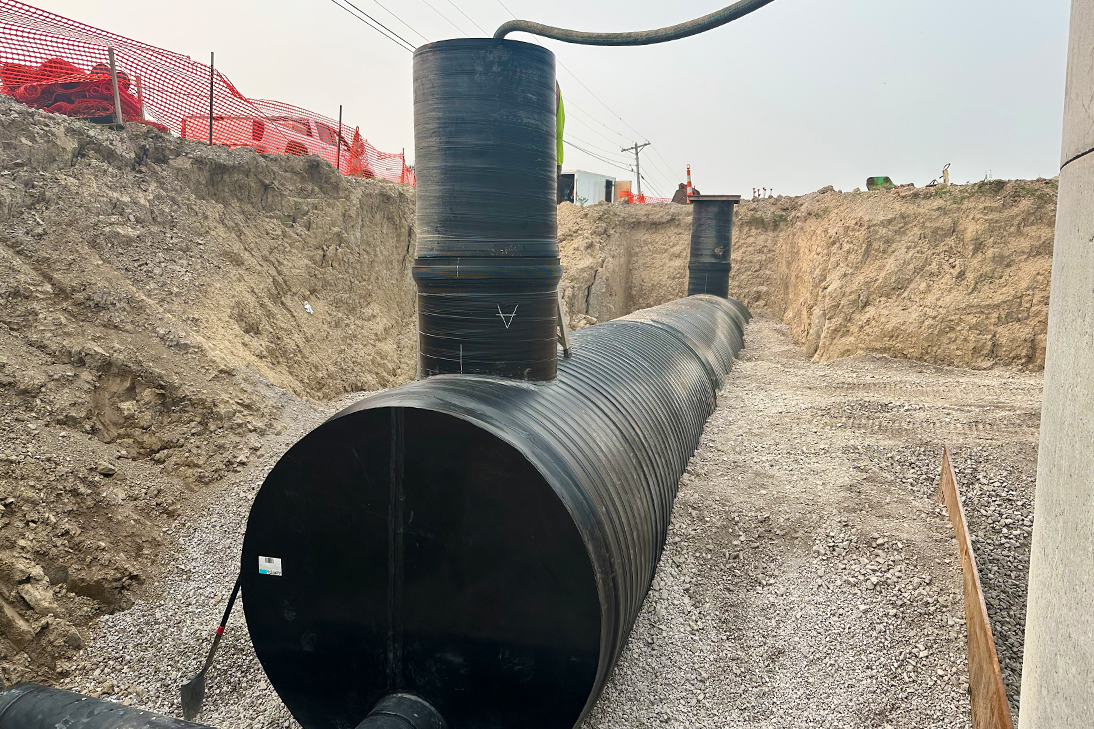

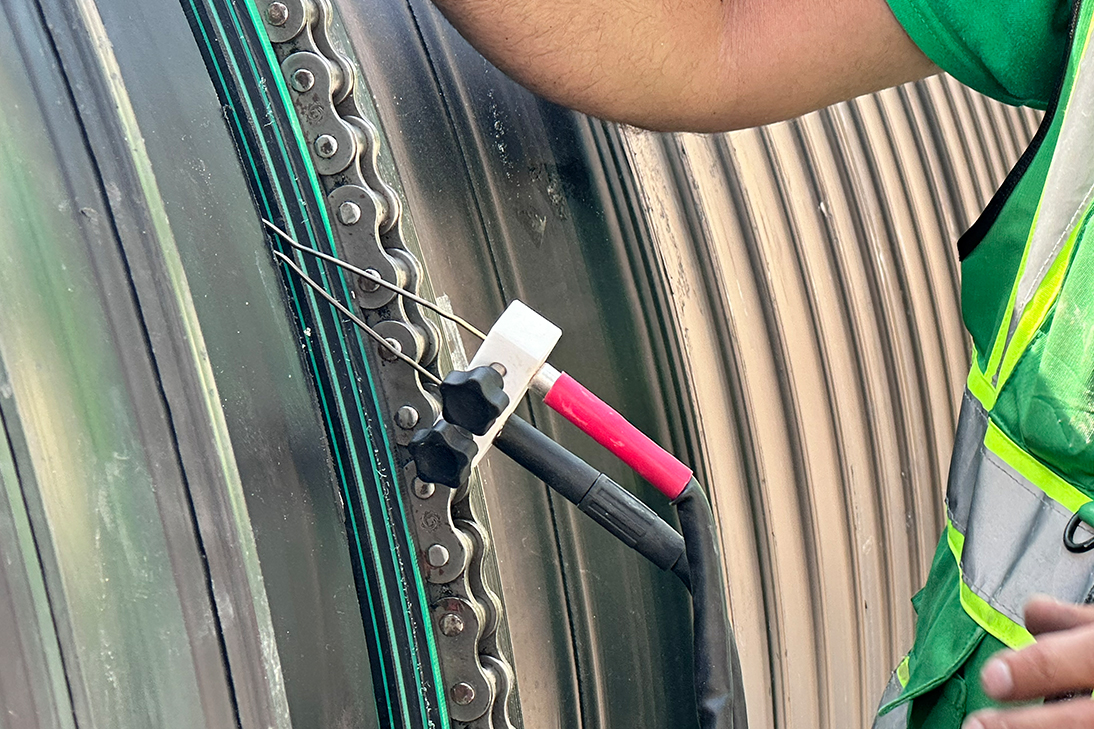

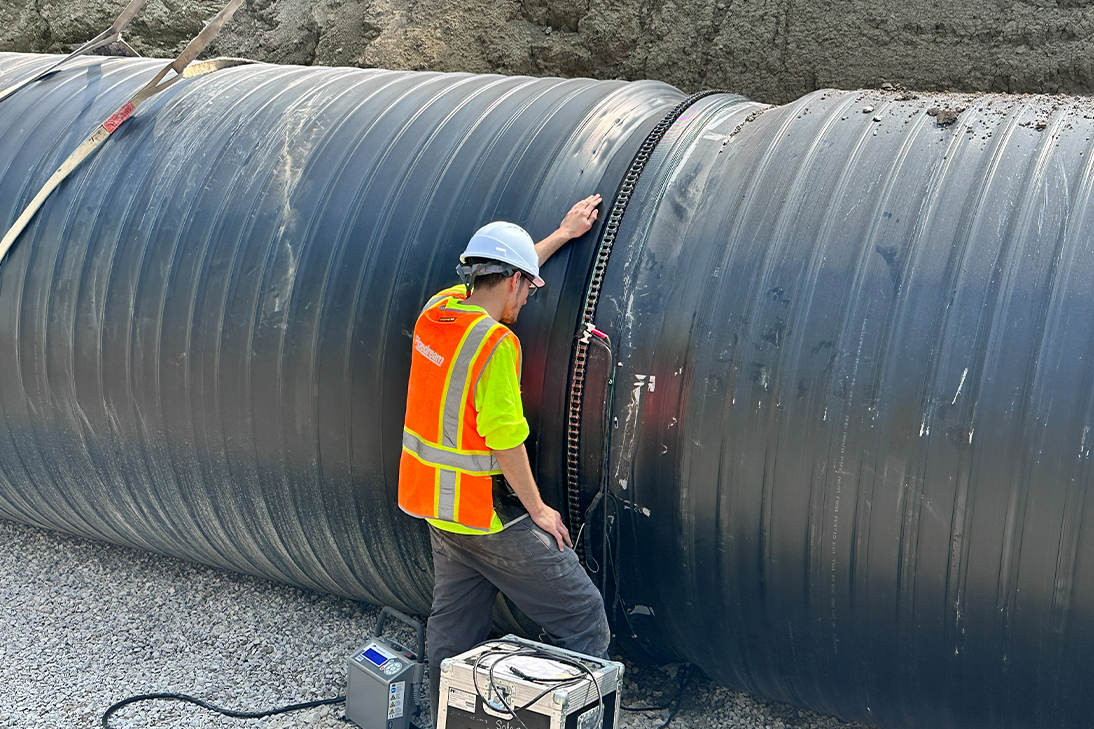

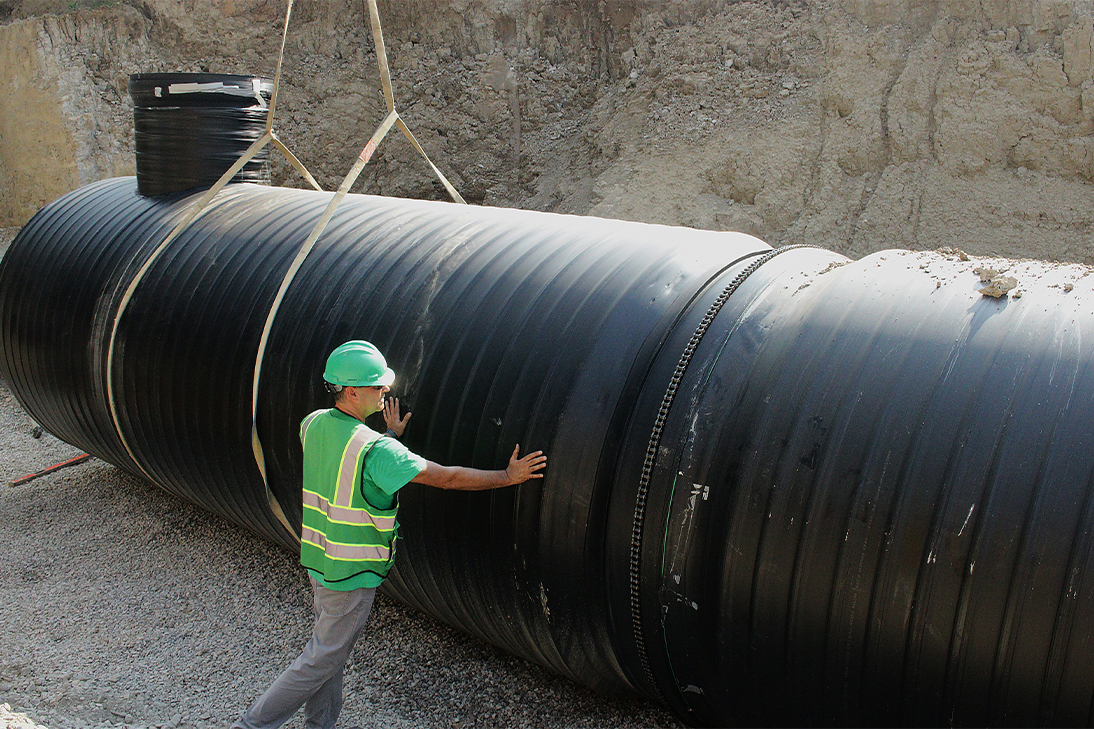

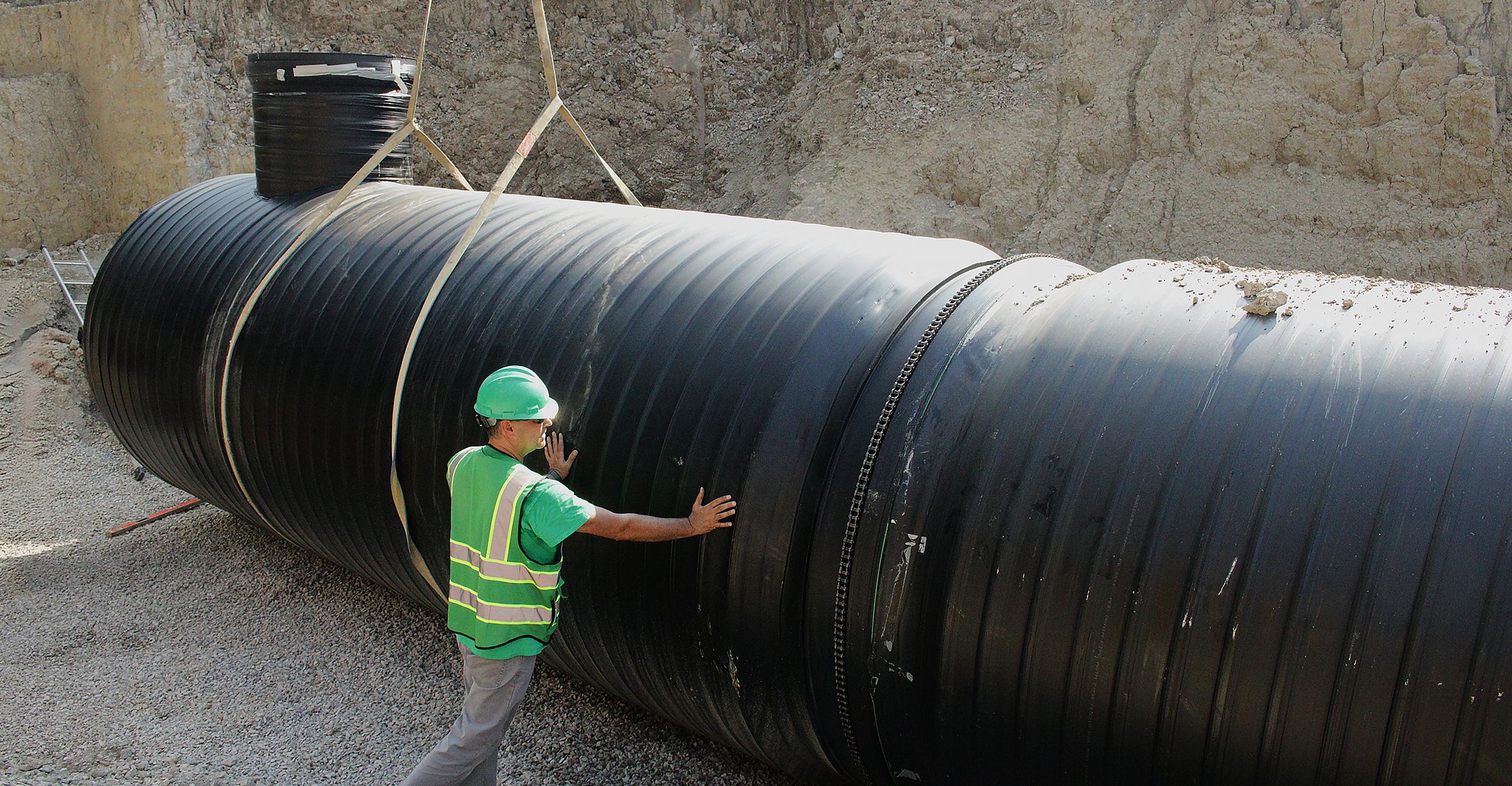

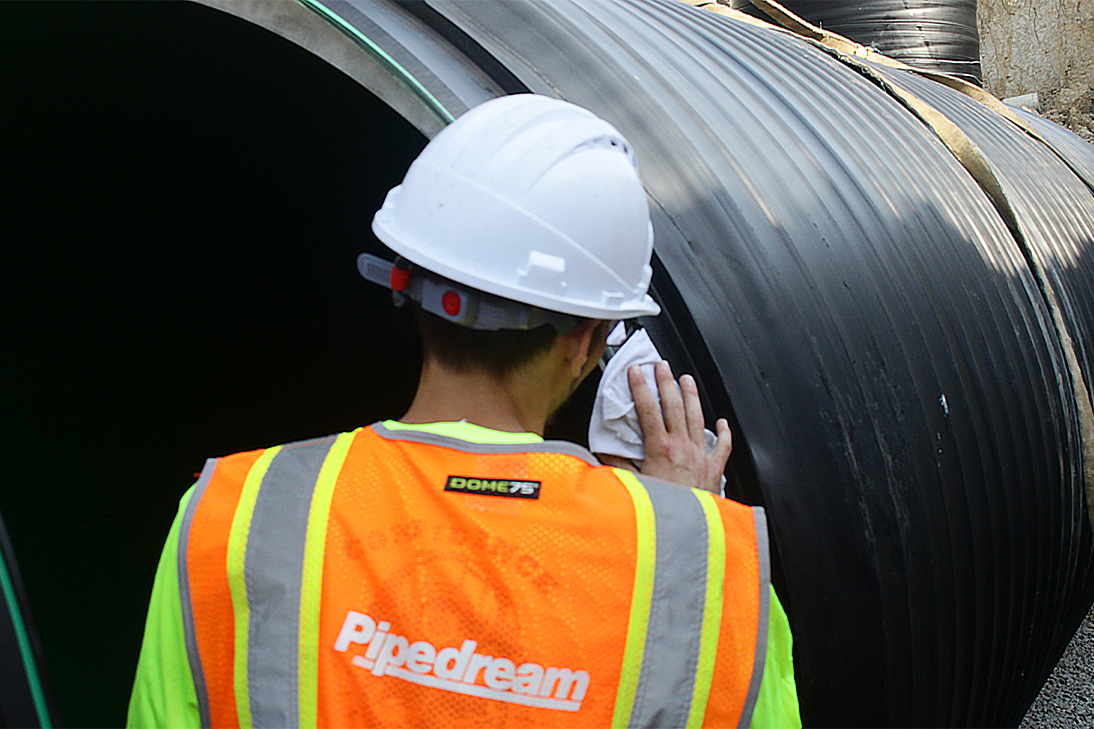

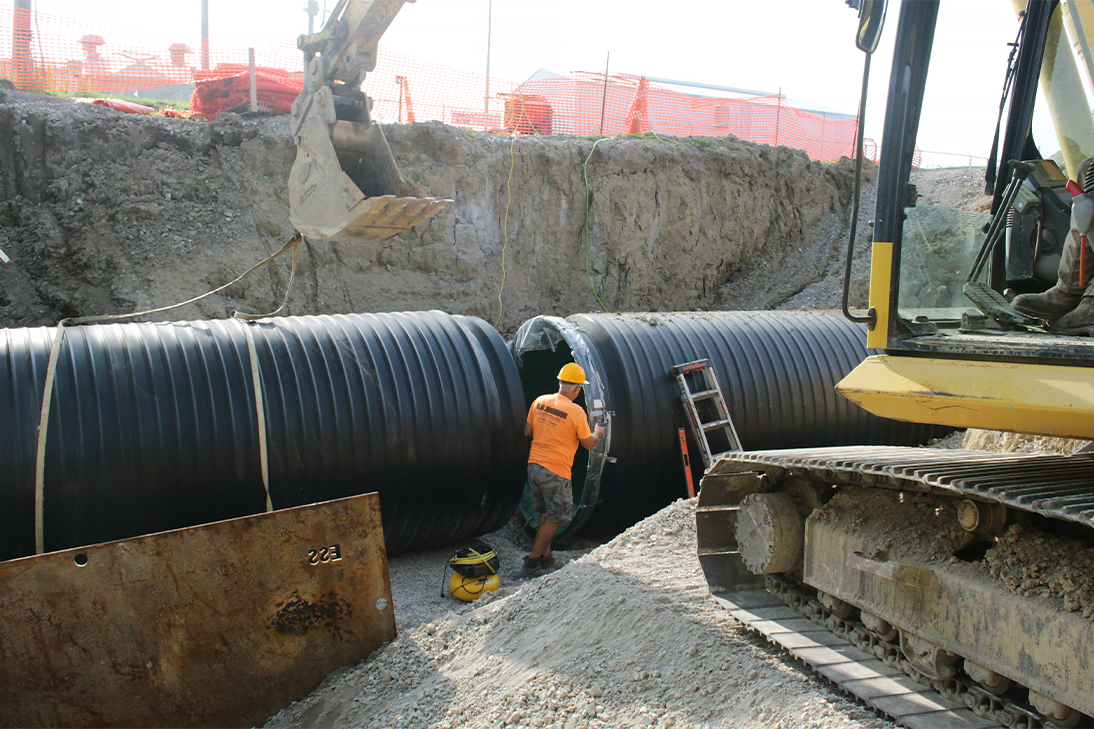

Electrofusion technology played a key role in the installation. Two electrofusion joints were completed on the 84-inch pipe, with one performed at the manufacturing facility and one completed onsite. Two vertical risers were also electrofused onsite, creating a secure and watertight assembly.
The combination of factory coordination, onsite technical support, and adaptable fabrication allowed the contractor to efficiently accommodate changing field conditions while maintaining project quality standards.
WHY KUSTOMFLO MADE THE DIFFERENCE
• Long-term system reliability with electrofusion joints.

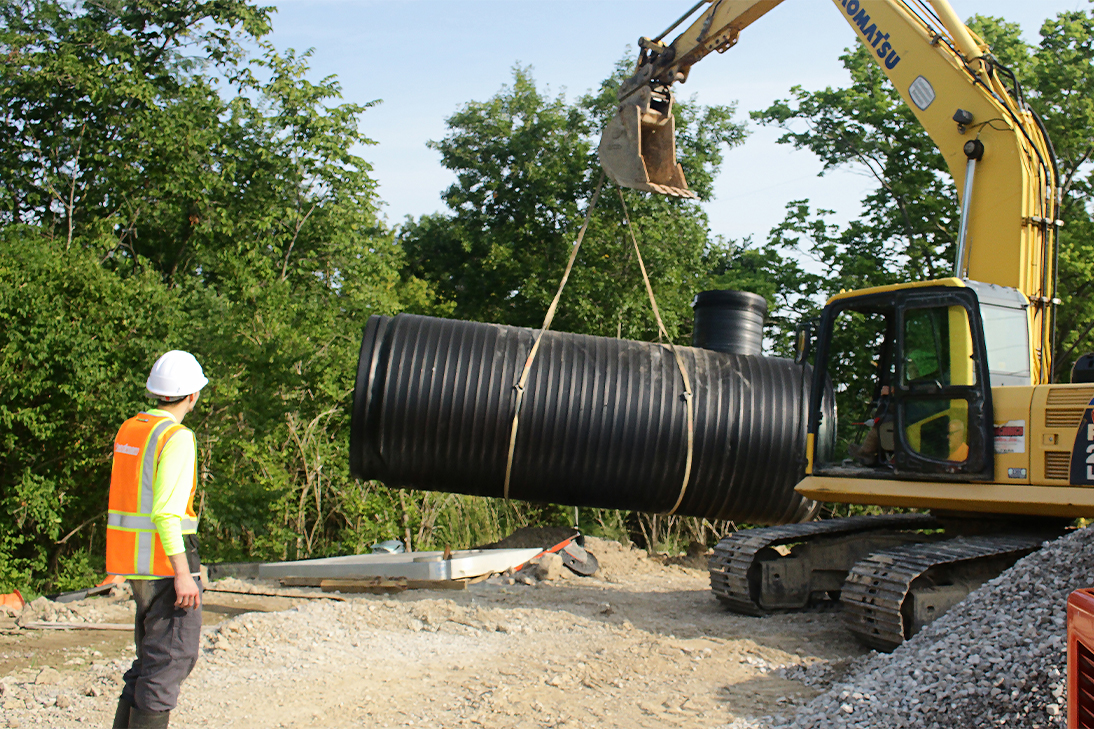

• Lightweight components that simplified handling and installation compared with traditional materials.
• Custom fabrication capabilities that accommodated varying elevations, access requirements, and bulkhead connections.
• Strong collaboration between the fabrication team, onsite support staff, contractor, and engineer throughout the project.
• Fast, secure connections completed both before shipment and in the field, helping keep installation on schedule.
Bottom line: KUSTOMFLO provided a customized, watertight equalization tank solution that met the City’s operational requirements while giving the contractor the flexibility needed to address real-world field conditions efficiently and successfully.
